Bis(2-[4-(4,6-diphenyl-1,3,5-triazine-2-yl)-3-hydoxyphenoxyl]ethyl]dodacenedioate (Appolo-1000)

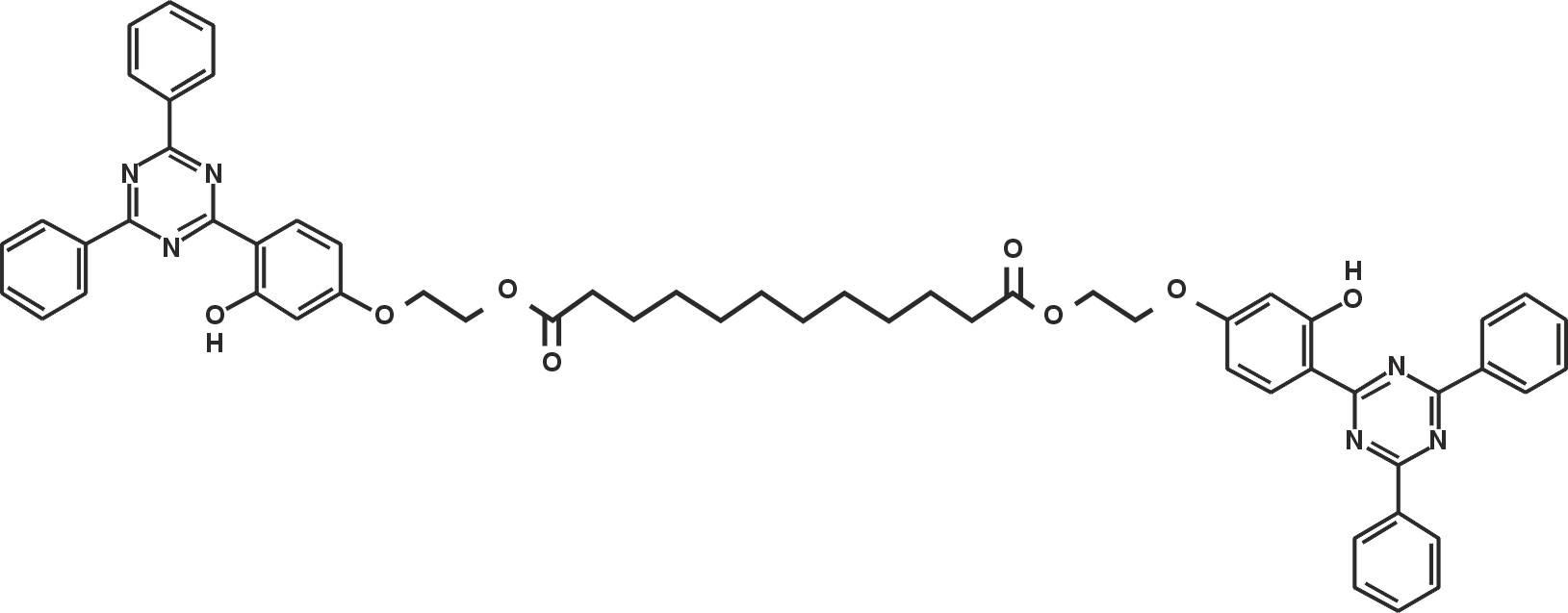

1. STRUCTURE
Bis(2-[4-(4,6-diphenyl-1,3,5-triazine-2-yl)-3-hydoxyphenoxyl]ethyl]dodacenedioate (Appolo-1000)
2. PRODUCT NAME & DETAILS
Product Name Bis(2-[4-(4,6-diphenyl-1,3,5-triazine-2-yl)-3-hydoxyphenoxyl]ethyl]dodacenedioate (Appolo-1000)
Product Code 010136
CAS No 1482217-03-7
HS Code 2933.69.90
Molecular Formula C58H56N6O8
Molecular Wt. 965.1
3. REGULATORY INFORMATION
Chemical nameCommon names and synonymsCAS numberEC number
Bis[2-[4-(4,6-diphenyl-1,3,5
-triazine-2-yl)-3-hydoxyphenoxy]
ethyl] dodacenedioate
1,12-bis[2-[4-(4,6-diphenyl-1,3,5-triazin
-2-yl)-3-hydroxyphenoxy]ethyl] ester
Dodecanedioic acid
1482217-03-7
     __
European Inventory of Existing Commercial Chemical Substances (EINECS)
Not Listed
EC Inventory
Not Listed
United States Toxic Substances Control Act (TSCA) Inventory
Not Listed
China Catalog of Hazardous chemicals 2015
Not Listed
Chinese Chemical Inventory of Existing Chemical Substances (China IECSC)
Not Listed
Korea Existing Chemicals List (KECL)
Listed
Canadian Domestic Substance List (DSL)
Listed
Canadian Non-Domestic Substance List (NDSL)
Not Listed
Japanese Existing and New Chemical Substances Inventory (ENCS)
Not Listed


4. SPECIFICATION
Physical AppearancePale Yellow Powder
Purity
NLT 95%
Volatiles
NMT 1%
Transmittance (%) 460 NM
NLT 90.0%
Transmittance (%) 500 NM
NLT 95.0%
Gardner
NMT 2.0

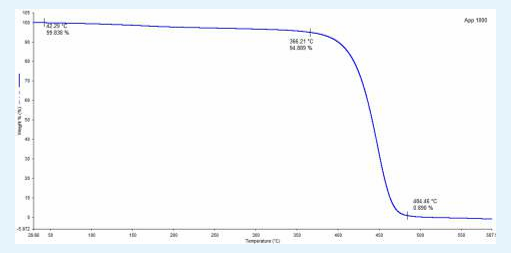

5. TGA CURVE
6. APPLICATIONAppolo-1000 is Hydroxy phenyl triazine UV absorber which has very low volatility  at high process temperature

It is used in Polycarbonate, polyethylene terepthalates etc.
7. SPECTRAL TRANSMISSION

APPOLO-1000 0.001% (Toluene cell thickness=1 cm) - RawData
APPOLO-1000 0.002% (Toluene cell thickness=1 cm) - RawData
APPOLO-1000 0.004% (Toluene cell thickness=1 cm) - RawData
APPOLO-1000 0.006% (Toluene cell thickness=1 cm) - RawData
APPOLO-1000 0.008% (Toluene cell thickness=1 cm) - RawData
8. HAZARD CLASSIFICATION
Non Hazardous material.
              Irritant
9. ANNUAL CAPACITY
50 MT.
10. STORAGE CONDITION
Stored in closed container at ambient temperature. Avoid direct sunlight.
11. PACKING DETAILS
300 kg in big bag with PE Liner.
12. SHELF LIFE
3 years.


Disclaimer
Typical properties should not be considered as specification.
Product covered by valid patents are not offered or supplied for commercial use. The Patent position should be verified by the customer.
Products will not be supplied to countries where they could be in conflict with existing patents.
Products currently covered by valid US patents are offered for R&D use in accordance with 35 USC 271 (e) (I) Above information is given in good faith and without warrenty.

The above information is given in good faith and is without warranty
