2-(2,4-Dihydroxyphenyl)-4,6-diphenyl-1,3,5-triazine (Stellar-2016)

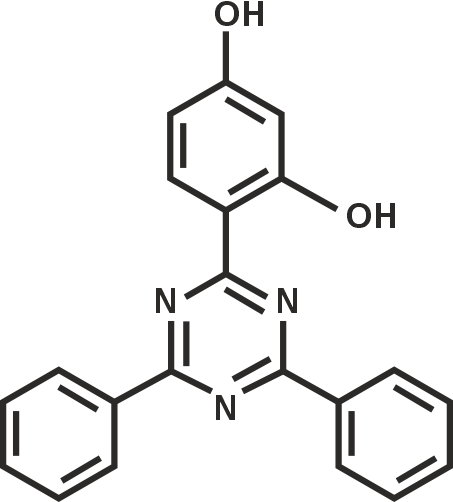

1. STRUCTURE
2-(2,4-Dihydroxyphenyl)-4,6-diphenyl-1,3,5-triazine  (Stellar-2016)
2. PRODUCT NAME & DETAILS
Product Name 2-(2,4-Dihydroxyphenyl)-4,6-diphenyl-1,3,5-triazine (Stellar-2016)
Product Code 010645
CAS No 38369-95-8
HS Code 2933.69.90
Molecular Formula C21H15N3O2
Molecular Wt. 341.36
3. REGULATORY INFORMATION
Chemical nameCommon names and synonymsCAS numberEC number
2-(2,4-Dihydroxyphenyl)
-4,6-diphenyl-1,3,5-triazine
2-(2,4-Dihydroxyphenyl)
-4,6-diphenyl-1,3,5-triazine
38369-95-8
        -----
European Inventory of Existing Commercial Chemical Substances (EINECS)
Not Listed
EC Inventory
Not Listed
United States Toxic Substances Control Act (TSCA) Inventory
Not Listed
China Catalog of Hazardous chemicals 2015
Not Listed
Chinese Chemical Inventory of Existing Chemical Substances (China IECSC)
Not Listed
Korea Existing Chemicals List (KECL)
Not Listed
Canadian Domestic Substance List (DSL)
Not Listed
Canadian Non-Domestic Substance List (NDSL)
Not Listed
Japanese Existing and New Chemical Substances Inventory (ENCS)
Not Listed


4. SPECIFICATION
Physical AppearanceWhite To Pale Yellow Powder
Identification (HPLC)
Identical
Melting Point
273.0 to 276.0°C
Purity By HPLC
NLT 99.0%
Transmittance (%) 500 NM
NLT 75.0%
Transmittance (%) 460 NM
NLT 50.0%
Volatiles
NMT 0.50%
5. APPLICATIONUsed in longpass filter of photovoltaic element such as dye solar cell.
A longpass (LP) Filter is an optical interference or coloured glass filter that attenuates shorter wavelengths and transmits (passes) longer wavelengths over the active range of the target spectrum.
6. HAZARD CLASSIFICATION
Non Hazardous substance.
              Irritant
7. CAPACITY
50 MT per year
8. STORAGE CONDITION
Store in closed container at ambient temperature. Avoid direct sunlight.
9. PACKING DETAILS

Big Jumbo Bag

Capacity  500 kg & Net Weight 250 kg

1 Bag 250 kg on One Pallet

Corrugated Boxes (7 Ply)

Size = 360 X 360 X 480 mm

Net Quantity per box = 20 kgs

Inner Packing double plastic liner inside

18 boxes can be placed on wooden pallet (ISPM 15) in 2 tier

(9 Boxes in one tier * 2 tier = 18 Boxes)

Total quantity per pallet = 18*20 = 360 kgs

One 20 feet container load quantity = 360*10 pallets = 3600 kgs

10. SHELF LIFE
3 years.
Disclaimer
Typical properties should not be considered as specification.
Product covered by valid patents are not offered or supplied for commercial use. The Patent position should be verified by the customer.
Products will not be supplied to countries where they could be in conflict with existing patents.
Products currently covered by valid US patents are offered for R&D use in accordance with 35 USC 271 (e) (I) Above information is given in good faith and without warrenty.

The above information is given in good faith and is without warranty
